The World’s Leading Virtual Laboratory for Fluid Power and Motion Control Design, Simulation, Animation, and Optimization

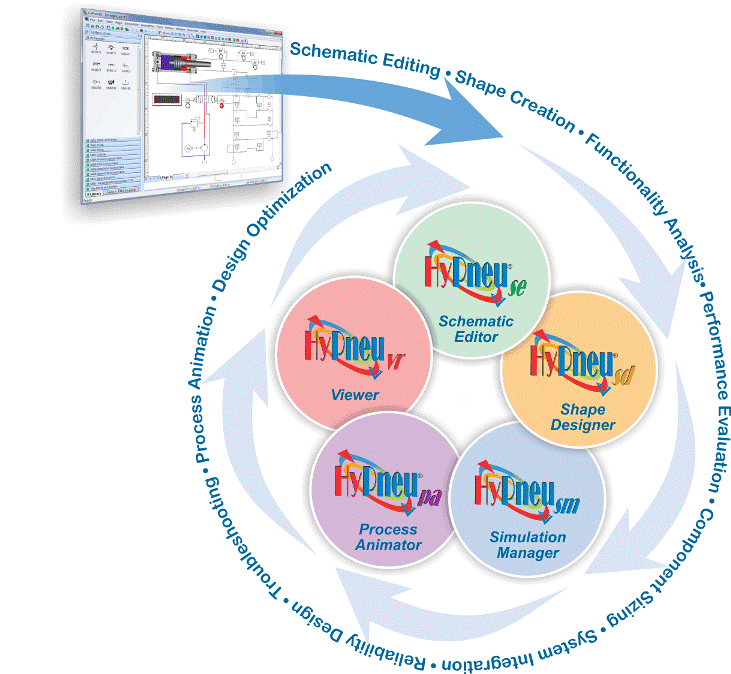

HyPneu fluid power design software allows the designer to develop a graphical representation of a hydraulic and pneumatic system. HyPneu processes the information in the graphical circuit and allows the user to assign specific components to the system, to run both steady state and dynamic simulations of the system, and display the results in a meaningful manner. HyPneu gives you the power to create accurate computer-based prototypes that can be analyzed, tested, and revised without having to build costly experimental units. HyPneu's unique software product line for Total Design Management works together to give today's designers the ultimate simulation experience.

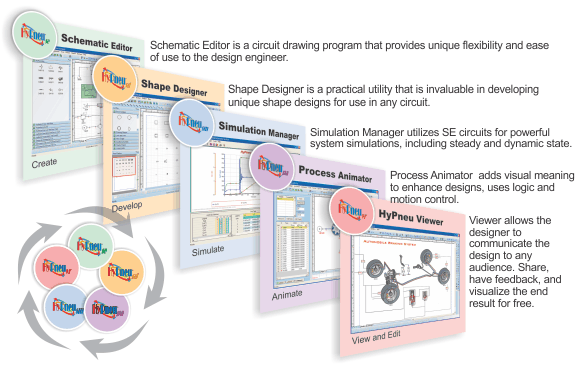

(Click on a product in the image for more information.)


HyPneu Schematic Editor HyPneu Express HyPneu Enterprise HyPneu EDU
HyPneu SE
HyPneu SD
HyPneu SM
HyPneu PAC Optional Optional Optional
HyPneu PAS Optional Optional
HyPneu Viewer
Thermal Simulator Optional
HyPneu Elite Optional
HyPneu Linx Optional Optional
Frequency Analyzer Optional
HyPneu Magi Optional
Contamination Control Simulator Optional
Client Server Co-Simulator Optional
Fuel Delivery and Controller Simulator Optional
Environmental Control/Air Conditioning System Optional
Model Shapes Available Over 600* Over 600* Over 600* Over 600*
Models Available Over 600* Over 600* Over 600*
Model Simulation Limit 100 Unlimited 100
Network Version Optional Optional Optional
Textbook Hydraulic Component Design and Selection Optional Optional
System Reliability Assurance Simulator Optional

* The number of available model shapes depends on the product and add-on packages selected.
Note: BarDyne reserves the right to change product configurations at any time.

HyPneu fluid power design software empowers you to:

  • Effortlessly create schematics using HyPneu's Schematic Editor
  • Take advantage of HyPneu's unequaled simulation capabilities
  • Set up your own component database
  • Access our unparalleled technical support

HyPneu Users Receive

  • Free technical support and free HyPneu updates for a period of one year from the date of purchase
  • Optional technical support and upgrades provided on an annual basis (MSU License)
  • Optional on-location seminars teaching design principles and consulting to solve design problems
  • Optional component testing and model verification
